Omer MCO14.5 Mobile Column Lift – 14,500lb Capacity Each – ALI Certified
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
🛠️ Product Overview

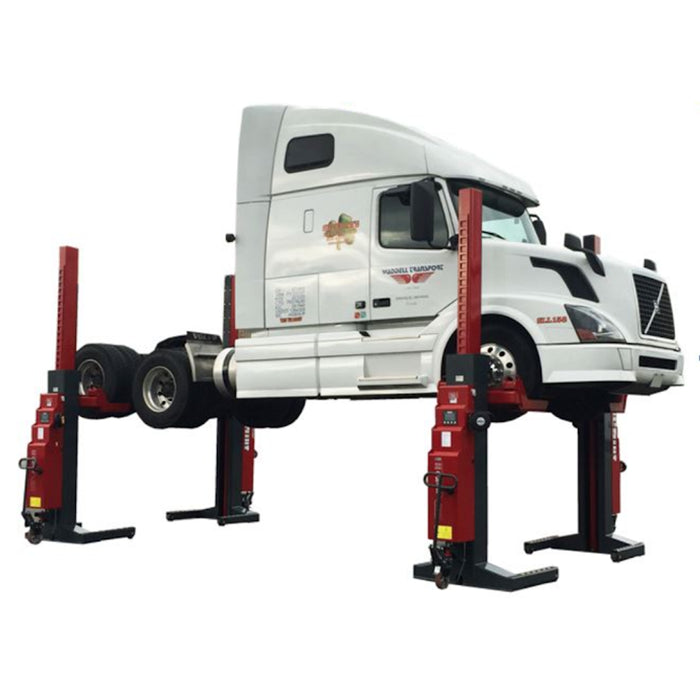

The Omer MCO14.5 Mobile Column Lift is a powerhouse designed for heavy-duty workshops and fleet operations. Each column delivers 14,500 lbs of lifting capacity, and when combined in sets of 4, 6, or 8, the system can lift up to 76,000 lbs, making it ideal for buses, trucks, off-road vehicles, and commercial fleets.
Manufactured in Italy by O.ME.R S.p.A. in an ISO 9001-certified facility and ALI Certified, the MCO14.5 delivers unmatched strength, mobility, and safety. Featuring industrial-grade 24V rechargeable batteries, tablet-style LCD controls, and synchronized operation, it ensures efficient and reliable lifting with maximum flexibility.
🔑 Key Features
-
Heavy-Duty Capacity – 14,500 lbs per column, up to 76,000 lbs with four columns.
-
Flexible Configurations – Use as a single column, in pairs, or in sets of up to 8.
-
Portable Design – Compact footprint with spring-loaded Easy-Steer handle for smooth maneuverability.
-
Precision Control – 4.3” color LCD display provides live data on height, load, battery status, and diagnostics.
-
Fast Lifting – Reaches full 69” stroke in just 85 seconds with two-speed lowering and audible alarms.
-
Advanced Safety – Hydraulic and mechanical locks every 3.34”, dual hydraulic suspension, and synchronized lifting.
-
Durable Build – Powder-coated finish, PET (Teflon) bearings, Bosch pumps, and premium industrial batteries.
-
Wide Tire Range – Adjustable forks fit tire diameters from 23.6” to 53.1”.
-
Optional Accessories – Expand capability with wheel stands, lifting beams, adapters, and waterproof cabinets.
-
Corrosion Protection – NEMA-rated waterproof cabinets and optional hot-dip galvanization available.
📊 Specifications
-
Model: MCO14.5
-
Capacity per Column: 14,500 lbs (6.5T)
-
Max Capacity (4 Columns): 76,000 lbs (34.5T)
-
Max Columns: 8
-
Stroke: 69” (1753 mm)
-
Lifting/Lowering Time: 85 seconds
-
Average Lift Cycles Per Charge: ~25 (at 85% load)
-
Battery Capacity: 55 Ah or 80 Ah, 24V system
-
Column Dimensions (LxWxH): 47.9” x 45.3” x 94.4”
-
Column Weight: ~1,300 lbs (590 kg)
-
Control Display: 4.3” color LCD
-
Power Supply for Charging: 110V/220V, 1PH, 8A
-
Safety Locks: Hydraulic + mechanical, every 3.34” (85 mm)
✅ Why Choose the Omer MCO14.5?
The MCO14.5 Mobile Column Lift combines massive lifting capacity, portability, and safety in one reliable system. Perfect for heavy-duty fleets, it offers unmatched versatility, efficiency, and long-term durability thanks to premium European engineering.
📦 What’s Included
-
Omer MCO14.5 Mobile Column Lift(s) (14,500 lbs each)
-
Hydraulic/electro-mechanical system
-
LCD touchscreen control panel
-
Industrial-grade batteries with charger
-
User manual & operator guide
🛡️ Warranty & Support
Protected by a 2-Year Parts Warranty and 1-Year Labor Warranty, backed by Omer’s trusted service support network.
