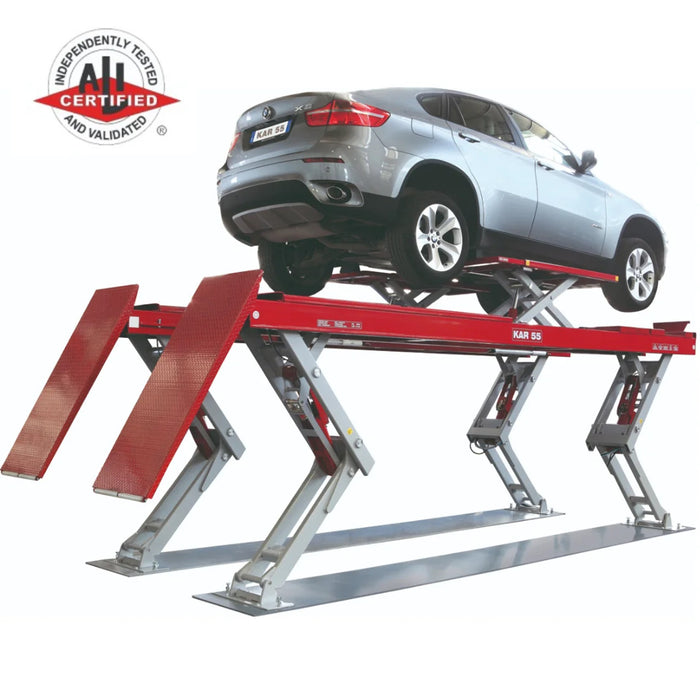

Omer KAR 54 Pantograph Alignment Lift – 14,000lb Capacity – ALI Certified

🛠️ Product Overview

The Omer KAR 54 Pantograph Alignment Lift sets the benchmark for precision, strength, and reliability in alignment and service lifts. Manufactured in Mirano, Italy by O.ME.R S.p.A., a world leader in lift technology for over 40 years, this alignment rack is ALI Certified and built in an ISO 9001-certified facility. With a 14,000 lb capacity, Siemens 3HP motor, BOSCH pump, and OMER’s patented ASO Absorbing System, the KAR 54 delivers unmatched performance and durability for busy professional shops.

Engineered with advanced volumetric control, the lift ensures perfect leveling without electronic sensors, while its boxed-style runway structure eliminates flex and sag. Whether surface or flush-mounted, alignment or service deck, the KAR 54 adapts to your shop needs with maximum stability, efficiency, and technician productivity.

🔑 Key Features

• Heavy-Duty 14,000 lb Capacity – Handles a wide range of passenger vehicles and light trucks.

• Made in Italy – Built in an ISO 9001 facility with premium Siemens 3HP motor and BOSCH pump.

• Patented ASO System – Absorbs load stresses, preventing deflection or torque on runways.

• Superior Alignment Accuracy – Volumetric control keeps lift level within ¼" without sensors or PC boards.

• Structural Strength – Multi-piece boxed runway construction resists flex and ensures precise alignments.

• Flexible Configurations – Available in surface or flush-mount, with alignment or service deck options.

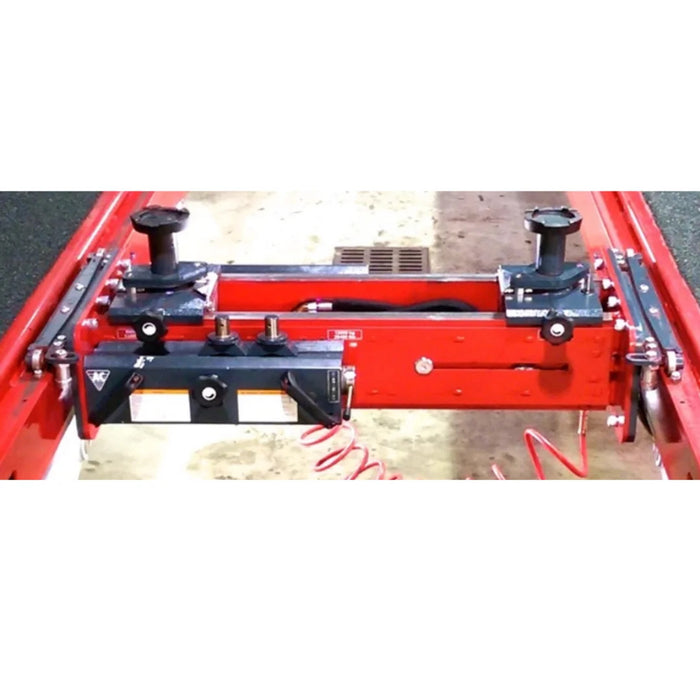

• Customizable Lengths – Runways available from 16’ to 20’, with optional 9,000 lb runway lifting tables.

• Low-Maintenance Design – Double-baked powder coat finish, zerk grease fittings, and optional galvanization.

• Safety Systems – Includes mechanical jacks, photocell alignment control, pressure-relief valves, and 18 locking positions.

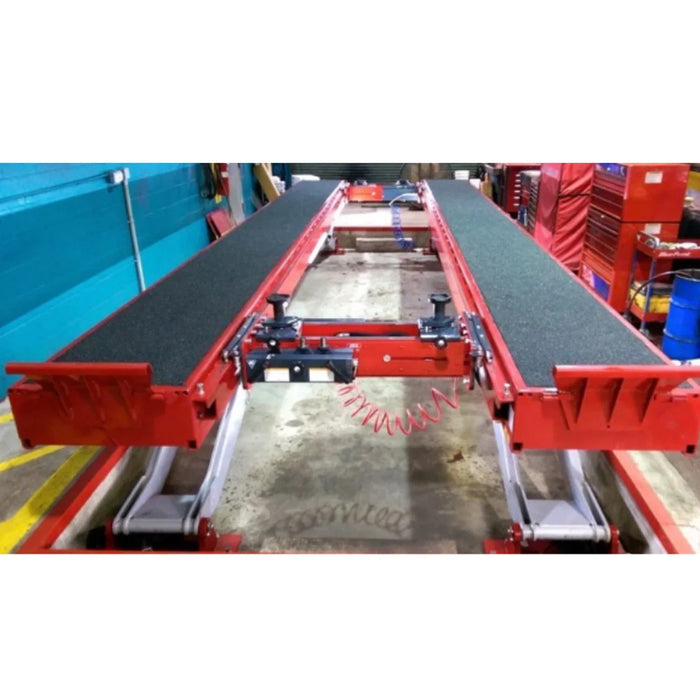

• Technician Productivity – Open design with no obstructions between runways, built-in pneumatic slip plates, and compressed air outlets.

📊 Specifications

• Capacity: 14,000 lbs (6.35T) – also available in 12,000 lbs & 16,000 lbs models

• Runway Lengths: 17’, 18’, or 20’ (5.2m, 5.5m, or 6m)

• Overall Length (Surface Mount): 259.1”–291.3” (6581–7399 mm)

• Runway Width: 25.6” (650 mm)

• Overall Width: 87.4”–98” (2220–2489 mm)

• Raised Height: 81” (2057 mm)

• Collapsed Height: 11.4” (290 mm)

• Lifting/Lowering Time: ~70 seconds

• Locking Positions: 18

• Control System: Volumetric hydraulic/mechanical

• Synchronization: Hydraulic displacement with torsion bar

• Noise Level: <75 dB

• Power Requirement: 220V, 1PH, 60Hz, 20A

• Shipping Weight: ~5,960 lbs (2909 kg)

• Finish: Double-baked powder coat (optional hot dip galvanizing)

✅ Why Choose the Omer KAR 54?

The KAR 54 Lift is trusted by professional alignment shops worldwide for its precision engineering, advanced safety systems, and Italian craftsmanship. Designed to improve productivity and accuracy, it offers long service life, low maintenance, and the flexibility to fit your shop’s exact needs.

📦 What’s Included

• Omer KAR 54 Pantograph Alignment Lift

• Siemens 3HP motor & BOSCH hydraulic pump

• Rolling jack rail & center hose cover

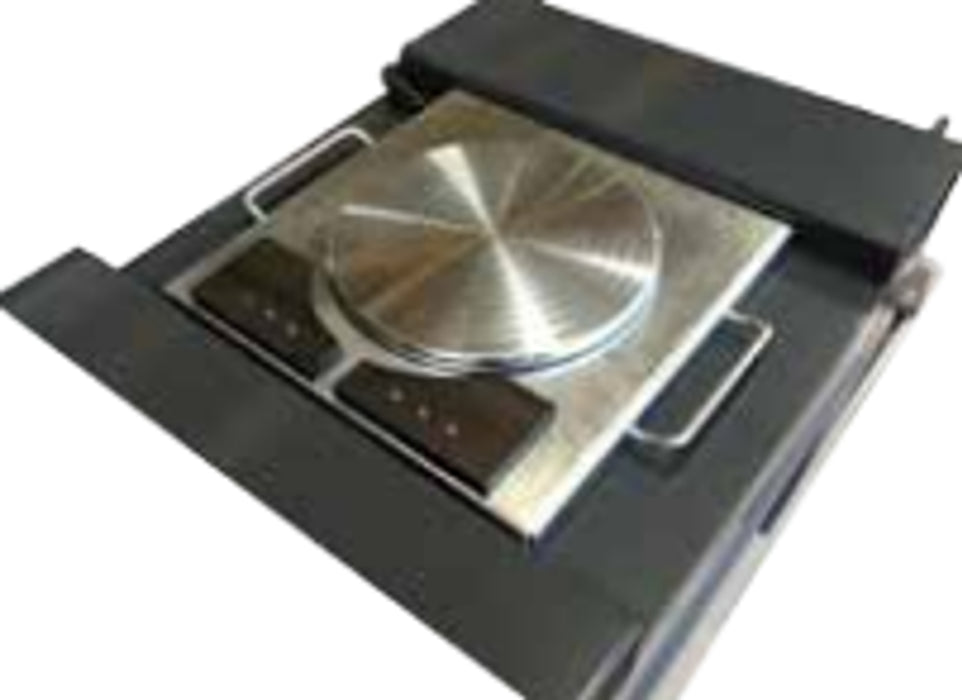

• Front pocket recesses for turning plates

• Rear pneumatic slip-plates

• User manual & installation guide

🛡️ Warranty & Support

Comes with 5-Year Extended Heavy-Duty Jacking Beam Warranty, plus parts and labor coverage to ensure peace of mind and long-term reliability.
